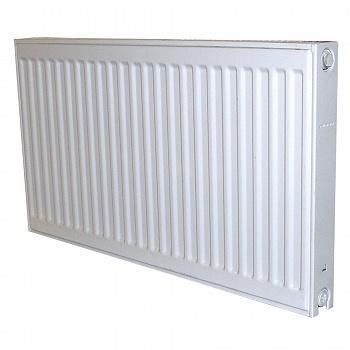

Purmo Ventil Compact Heating Radiator Type 22 300 Bottom Connection

More Information

Manufacturer

Purmo

Type of connection

Apakšas pieslēgums

Height (mm)

300

Details

Purmo panel heating radiator 22 type with bottom connection Ventil Compact M - Included in the set - With integrated thermostat valve (M30), Monclac type wall bracket, plug and air vent. Color - White RAL 9016. Construction - EN 442-1. Material - high quality sheet with deep profiling, made of cold rolled low carbon steel FeP0 1 in accordance with EN 10130 standard. Working pressure - 10 bar. Test pressure - 13 bar. Maximum temperature - 110°C. Surface treatment according to DIN 55900 standards. Steel thickness according to EN-442. For radiators with a height of 200mm, floor brackets must be purchased separately! For radiators with a length of 600-1600mm, 2 brackets are required, for 1800-2000mm, 3 brackets are required!

*Translated using automatic translation tool

Reviews

Write a review for: Purmo Ventil Compact Heating Radiator Type 22 300 Bottom Connection

Name

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Review about product

Product options

Purmo Ventil Compact Heating Radiator Type 22 300x500mm with Bottom Connection (3422300040), 6418569103126
Purmo Ventil Compact Heating Radiator Type 22 300x600mm With Bottom Connection (3422300050), 6418569103140
Purmo Ventil Compact Heating Radiator Type 22 300x700mm with Bottom Connection (3422300060), 6418569103164
Purmo Ventil Compact Heating Radiator Type 22 300x800mm with Bottom Connection (3422300080), 6418569103201
Purmo Ventil Compact Heating Radiator Type 22 300x900mm With Bottom Connection (3422300090), 6418569103225
Purmo Ventil Compact Heating Radiator Type 22 300x1000mm With Bottom Connection (3422300100), 6418569103249
Purmo Ventil Compact Heating Radiator Type 22 300x1100mm With Bottom Connection (3422300110), 6418569103263
Purmo Ventil Compact Heating Radiator Type 22 300x1200mm With Bottom Connection (3422300120), 6418569103287
Purmo Ventil Compact Heating Radiator Type 22 1400x300mm With Bottom Connection (3422300140), 6418569103300
Purmo Ventil Compact Heating Radiator Type 22 1600x300mm With Bottom Connection (3422300160), 6418569103324
Purmo Ventil Compact Heating Radiator Type 22 1800x300mm With Bottom Connection (3422300180), 6418569103348
Purmo Ventil Compact Heating Radiator Type 22 300x2000mm With Bottom Connection (3422300200), 6418569103362

Purmo Ventil Compact Heating Radiator Type 22 300 Bottom Connection
