Huawei SUN2000-3.68KTL-L1, 1-Phase, 3.68kW, 2 MPPT, IP65

• AI powered arcing protection.
• Compatible to SUN2000-450W-P optimizer.
• Battery ready by direct Plug & Play, no extra device or any retrofit required.
• A 5KTL inverter allows 5KW full power AC output plus 5KW full power battery charge.
• High efficiency inverter topology.

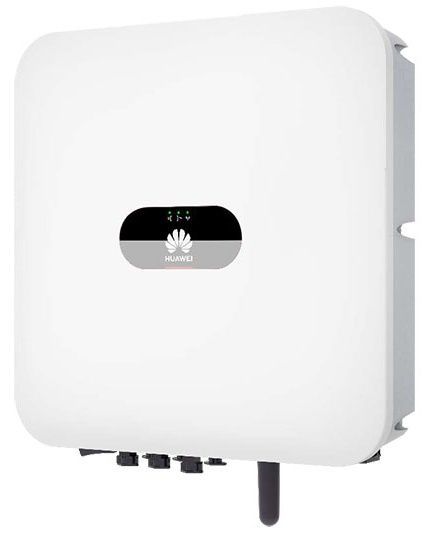

The Huawei SUN-2000-3.68KTL-L1 inverter makes electricity from your own PV system usable. The component converts direct current into alternating current and thanks to the high efficiency, users benefit from increased efficiency. The dimensions of the Huawei SUN-2000-3.68KTL-L1 inverter are 365 x 365 x 156 mm, which means that the component is extremely compact. With a weight of 12 kg, it can also be assembled by a single person. The Huawei SUN-2000-3.68KTL-L1 inverter has a battery connection and supports RS485 communication for connection to a smart power meter or similar. The connection of a battery can be made either directly during the initial installation or subsequently, thanks to connection via Plug&Play, the effort is extremely low. In any case, integration into the system via the plug connections is extremely simple. With the help of the app, commissioning is no problem within a few minutes.

The advantages of the Huawei SUN-2000-3.68KTL-L1 inverter are manifold and do not only extend to the battery connection, an overvoltage protection (type 2 for AC and DC) is also already integrated. In addition, the component has two independent MPP trackers, the operating noise is pleasantly quiet thanks to convective air cooling. The nominal power of the Huawei SUN-2000-3.68KTL-L1 inverter is specified at 3,680 watts, the voltage range extends from 90 to 560 volts. In operation, the inverter reaches a maximum efficiency of 98.4%,so it is suitable for efficient operation of the system. The European efficiency is 97.3 %.
