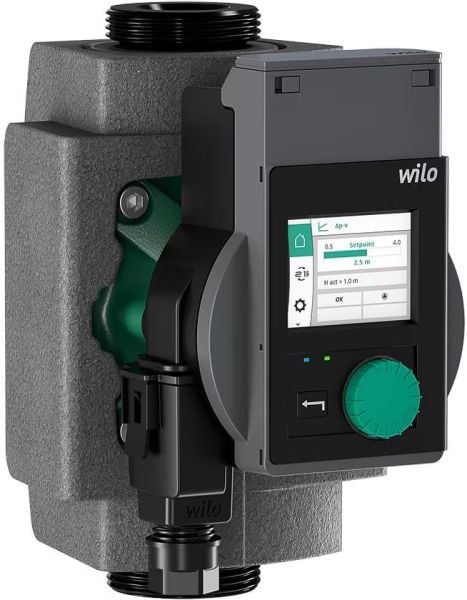

Wilo Stratos Pico 25/0.5-4 180mm Circulation Pump 1½" (550312514180)

WILO Stratos PICO, electronically controlled high efficiency pump

Glandless circulator with screwed connection, blocking-current proof synchronous motor using ECM technology (up to 90 % energy saving compared to an uncontrolled pump) and built-in electronic power control for continuous differential pressure control. Can be used for all heating and air-conditioning applications (-10 °C to +110 °C). Control mode can be selected in accordance with the radiator/underfloor heating application.

Control modes:

• Permanent, automatic power adjustment to system requirements without setpoint specification Wilo Dynamic Adapt plus (factory setting)
• Settings assistant for number of radiators or underfloor heating area
• Variable differential pressure (Δp-v)
• Constant differential pressure (Δp-c)
• Constant speed (n-const.)

Functions:

• Automatic night setback
• Fault/warning message display including description and error code in plain text
• Venting routine for automatic venting of the rotor chamber
• Manual restart function for additional deblocking of the pump as required
• Key lock
• Function for resetting the electricity meter or for resetting the settings to the factory settings
• Dry-running detection
• Automatic deblocking function and integrated motor protection
• Supports hydraulic balancing with the Wilo-Assistant app
